Brand Name : | LENGE |
Model Number : | YWGB |
Certification : | CE |
Price : | Negotiate |
Payment Terms : | T/T, L/C |
Supply Ability : | 2000 Pieces per Month |
Delivery Time : | 5 - 7 Days |

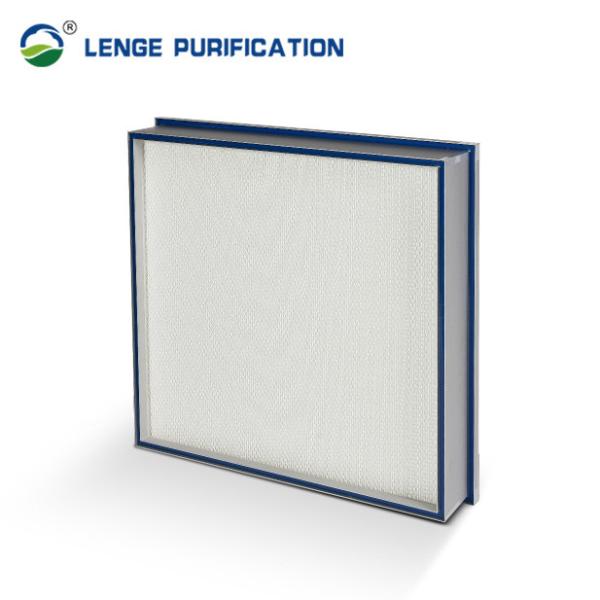

H14 99.995 % Gel Sealed Mini - Pleat HEPA Filter For Clean Room
Material and application:
Frame: Aluminum
Spacers: EVA
Filter media: Glass Fiber
Gasket: Gel
Operation Conditions: ≤80%/100%RH,40℃
standard size and parameter
Model | Overall size L×W×D | Rated Airflow (m3/h) | nitial pressure drop (Pa) | Final pressure drop (Pa) | Efficiency @MPPS |
YWGB410.410-93H14 | 410×410×93 | 500 | 220 | 450 | 99.995%≤E<99.9995% |
YWGB550.550-93H14 | 550×550×93 | 1000 | |||
YWGB650.650-93H14 | 650×650×93 | 1500 | |||
YWGB750.750-93H14 | 750×750×93 | 2000 | |||
YWGB370.370-93H14D | 370×370×104 | 500 | |||
YWGB510.510-93H14D | 510×510×104 | 1000 | |||
YWGB610.610-93H14D | 610×610×104 | 1500 | |||
YWGB710.710-93H14D | 710×710×104 | 2000 |
Production Line
Packing and Delivery
![]() |
