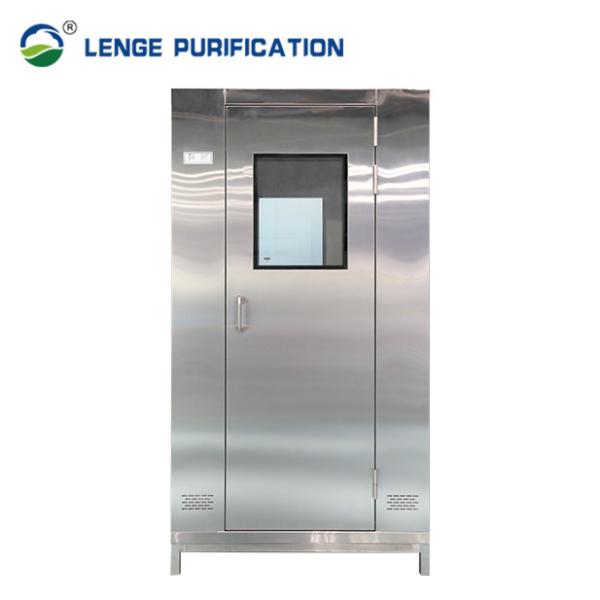

    24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : ASR - 080190
    Certification : CE, ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 100 Sets per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

    24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets

    Air Shower

    This air shower is used for the decontamination of personnel before entering clean rooms for avoiding contamination. Personal and materials entering or exiting the controlled environment are “scrubbed”by high velocity HEPA filtered air jets.Contaminated air is then drawn complete the base within the unit filtered and recirculated.


    Air Shower Cleanroom Air Shower With Nozzle

    • High velocity shower jets in excess of 25m/s ensure efficient scrubbing action to remove particulate matter.

    • Operating modes can be programmed in the field.

    • Control panel supervises all functions.


    Technical Specification

    Power supply: 380V50Hz

    Power: 1.5kW

    Noise: 65-75dB(A)

    Button: Power supply (luminous ring visible buttons) with emergency stop

    Technical Specification

    Cleanliness: Class D or higher

    Temperature: 5°C~40°C

    Product schematic diagram

    Air Shower Room Air flow structure diagram

    Standard size and parameters

    Model

    Overall size
    W×D×H

    Work area size
    W×D×H

    Air Volume (m/s)

    Number of nozzles

    HEPA size
    L×W×D

    ASR-080090

    1200×1000×2150

    800×900×1950

    25

    6

    650×650×93×1

    ASR-080090

    1400×1000×2150

    800×900×1950

    12

    650×650×93×2

    ASR-080140

    1400×1500×2150

    800×1400×1950

    18

    955×650×93×2

    ASR-080190

    1400×2000×2150

    800×1900×1950

    24

    650×650×93×4

    ASR-080290

    1400×3000×2150

    800×2900×1950

    36

    955×650×93×4

    Note: Air shower room and air shower channel not listed in the table can be made according to the customers' requirements
