VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System

Wuxi Lenge Purification Equipments Co., Ltd.
Contact Now
    Buy cheap VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System from wholesalers

    Buy cheap VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System from wholesalers
    • Buy cheap VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System from wholesalers
    • Buy cheap VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System from wholesalers

    VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LATM108
    Certification : ISO/CE
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 80 Sets per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

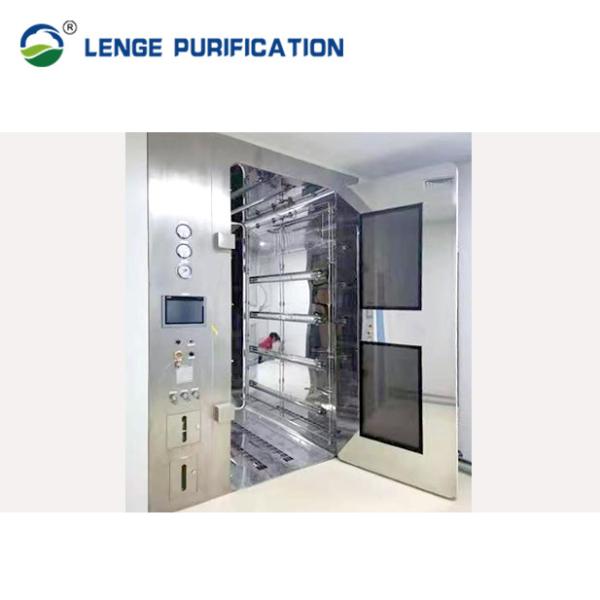

    VHP Clean Room Equipments SUS 304 Stainless Steel VHP Pass Box VHP Sterilization System

    Stainless Steel VHP Sterilization Chamber Clean Room Equipment For Class

    SUS 304 Stainless Steel VHP Pass Box Clean Room Equipment VHP Sterilization System

    Vaporized Hydrogen Peroxide

    VHP Concentration - no specific concentration value is set, the smaller the better under the condition of meeting the requirements of sterilization

    Temperature and humidity -- temperature rise does not exceed 5℃, humidity does not exceed 80%

    Chamber pressure -- about 10-20Pa slightly positive pressure to prevent infiltration of air in background area


    The vaccine industry is generally used for delivery:

    • sterile gloves and eye masks;
    • Sterile flask and lid;
    • Aseptic medium; Record;
    • Embryo eggs;
    • Fermentation tank etc.

    Laboratory animal room:
    cage rack or animal transfer

    VHP (Vaporized Hydrogen Peroxide) Decontamination Chamber is normally used for sterilization of outer surface of any object, which is not suitable for AUTOCLAVE & compatible with HYDROGEN PEROXIDE in vapour phase.


    • Reserved foundation pit, equipment internal ground and ground level
    • Door body multi-point fixed, high strength, no sagging
    • Split window, chamber situation can be clearly seen
    • If there is a dry/wet heat sterilization chamberet around, color steel plate isolation is recommended.

    Operation Principle

    Chamber air tightness test:JG/T 382-2012“Pass box”( - 500 Pa pressure maintaining 20 min,≤ - 250 Pa)
    HEPA leak detection: in situ scanning leak detection can be done for high efficiency of air supply and exhaust
    Cleanliness: static class A

    It is equipped with PAO dust outlet and upstream concentration detection outlet, which can realize efficient scanning leak detection of air inlet.


    Product Description

    VHP Decontamination Chamber is designed for two different zone of area, for transferring of product from lower classified zone to higher classified zone (Non– sterile area to Sterile area), without effecting the balancing of respective zone, containment free product transfer to higher classified zone.

    Characteristic & Features

    • Sterilization process <120min. to realize multiple sterilization operations one day.

    • Emergency Stop.

    • Decomposition filter can effectively reduce the concentration of VHP remain Reduce the impact on environment and personnel.

    • Very low hydrogen peroxide consumption.

    Technical Parameters & Specifications

    Item

    Technical Specification

    Material

    SUS304/316L Stainless Steel

    Application

    Pharmaceuticals, Food & Beverage, Electronics

    Structure

    Fully Enclosed

    Sterilization Time

    <120 min.

    Vaporization Power

    Clean Compressed Air

    Sterilization Efficacy

    6-log

    Sterilization Media

    30% Medical Grade H2O2

    Maintenance Mode

    Side Access/Up-Down Access

    Inlet Air Purification

    H14

    Cycling Mode

    Direct Exhaust

    Validation Document

    4Q/FAT/SAT

    System Monitoring

    Increase concentration

    Soft System

    Display the current step, remaining time and working status of main parts,
    time setting, system parameter setting, alarm information, online data monitoring,
    manual and automatic switching, sterilization batch input, validation information,
    PDF report, formula management


    Engineering Drawing

    VHP示意图-1



    Sterilization Process & Vaporizer Schematic Diagram


    Serial NO.Name
    1Evaporation system
    2Exhaust system
    3Air supply system
    4Exhaust duct
    5The sterilization chamber
    6Commodity shelf
    7Electric mounting bracket

    Validation Documents

    • FDS
    • DQ
    • FAT
    • I&OQ
    • SAT
    • PQ
    • ……
