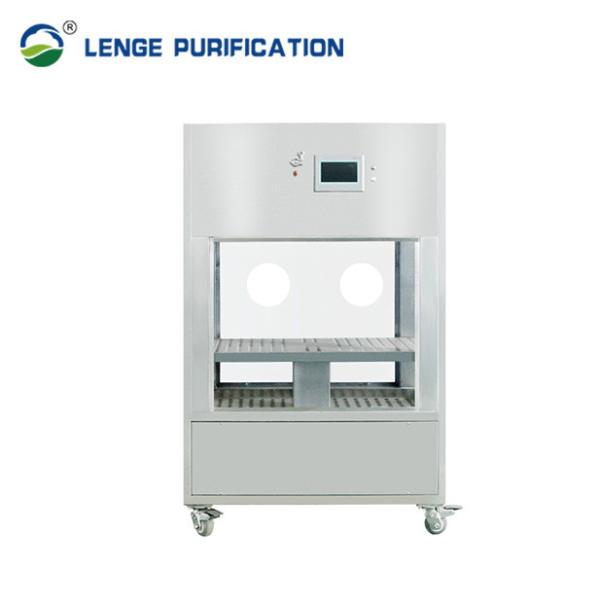

    SUS304 800 × 600 × 1800 MM LAF Laminar Air Flow Hood Trolley Vertical Air Supply

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LUFT8-072058
    Certification : CE/ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 150 Sets per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

    SUS304 800 × 600 × 1800 MM LAF Laminar Air Flow Hood Trolley Vertical Air Supply

    Vertical Air Supply Laminar Airflow Trolley In Clean Room:

    Laminar Flow Vertical Trolleys are used for the storage and the transfer of products that are sensitive to contamination, between two classified areas, generally separated by autoclaves. The trolleys are fitted with an independent power supply which keeps the laminar flow constant at any time.


    Characteristics and Features:

    • Product transfers under aseptic conditions.

    • Unidirectional flow; vertical or horizontal.

    • HEPA gel sealed design.


    Technical Specification:

    • Instrution:Box material: SUS304/1.2mm

    • Fan: DC Fan,2no.

    • Gel sealed mini-pleat HEPA filter

    • Digital pressure gauge(including signal feedback) : DWYER 1no.

    • PLC and modules: Siemens

    • Battery: 1 set (full charge can work for 2 hours)

    • Transparent acrylic enclosures are adopted all around.the front side is double door, the left, right, and rear sides are fixed sealing plateThe length of the laminar flow transport cart power is 5 meters.

    Product schematic diagram:

    层流小车


    standard size and parameters:

    ModelOverall size
    L×W×H
    Work size
    L×W×H
    pstream Rated
    air velocity
    (m/s)
    Working area
    clean class
    Power
    (kw)
    LUFT8-072058800×600×1800720×580×7500.45±20%Class A0.4
    LUFT10-0920581000×600×1800920×580×7500.4
    LUFT14-1120681200×700×18001120×680×7500.5

    Note: specifications listed in below table are only for customers' reference. It is mostly designed and manufatured according to customers' URS.
