    Class A LAF Clean Room Top Return SUS 304 Laminar Air Flow Units

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LUFH12-120060
    Certification : CE/SGS/ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 200 Sets per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

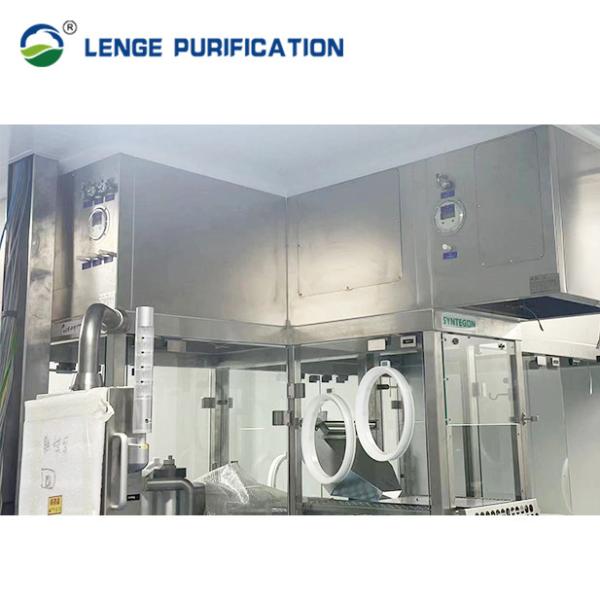

    Class A LAF Clean Room Top Return SUS 304 Laminar Air Flow Units

    LAF Laminar Air Flow Units Clean Room Class A Cleanliness


    Product Description

    The LENGE A-level unidirectional flow hood is designed and improved on the basis of the Class 100 laminated flow hood according to the requirements of EU GMP and FDA of the United States, and fully complies with the requirements of the 2010 version of GMP.

    Technical Specifications & Parameters


    MaterialSUS 304 / 316L stainless steel
    Filter ModulePanel filter, Gel HEPA filter
    Core PartAir Blower
    Rated Air Velocity (m / s)0.45 ± 20%
    Cleanliness ClassClass A
    Noise (dB)65 ~ 75
    Working AreaSterile core area
    Control ModeControl panel, touch screen, remote control + conrol panel
    LightingBuilt - in LED light
    Air Return TypeSide air return, ceiling air return
    Mounting TypeCeiling type, stand type
    Power Supply220V, 50Hz

    Note: The specifications listed in above table are only for customer’s reference. It is mostly designed and manufactured according to

    customer’s URS.


    LAF Characteristics & Features

    The HEPA filter is produced by the company on the advanced imported non-separator production line, the liquid tank is sealed, the efficiency is H14, the product has been 100% TOPAS leak detection, DEHS counting and scanning performance test, DOP integrity test, the quality has reached the international advanced level.

    • Provides HEPA filtered airflow through the work area that protects the product from airborne contamination and provides a sferile environment , minimizing cross contamination.

    • Build - in LED light.

    • Movable uniform membrane, wind speed will be uniformly distributed.

    • Adopt the new negative pressure design, completely solve the leakage problem from the structure.


    Containment System

    • Economical laminar flow cabinet with clean, simple, low-maintenance design is a work bench with class 100 environment can be used in assembly, testing and inspection procedures that require a continuous flow of ultra clean air.
    • Integrated fan filter module with low noise & energy efficient fan.

    气流和结构示意图

    Class A LAF Clean Room Top Return SUS 304 Laminar Air Flow Units
