    222 Fin PFA Pleated Filter Cartridge With Perfluorinated Flat Gasket

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LENGE-PFA
    Certification : CE/SGS/ISO/FDA
    Price : USD 20-30 / PCS
    Payment Terms : T/T, L/C
    Supply Ability : 2000 Pieces Per Month
    Delivery Time : 5 - 7 Days
    • Product Details
    • Company Profile

    222 Fin PFA Pleated Filter Cartridge With Perfluorinated Flat Gasket

    222 Fin PFA Pleated Filter Cartridge With Perfluorinated Flat Gasket:

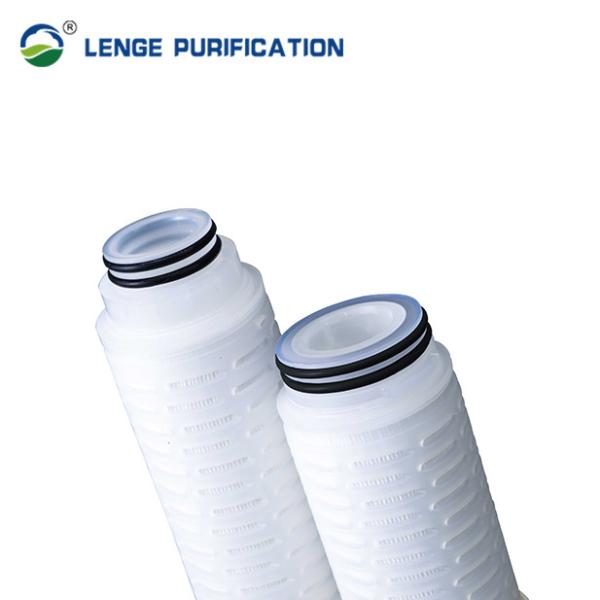

    PFA Pleated Filter Cartridge is made of polytetrafluoroethylene stretch membrane and PFA framework, which is characterized by high throughput, high flow rate, long life, excellent chemical compatibility and oxidation resistance. This filter cartridge is widely used in the filtration of various acids, alkalis, organic solvents and other chemicals in chemical filtration, and can meet the filtration requirements in most harsh environments.


    Technical Specifications and Operating Parameters:


    Size

    Diameter: 2.75" (69 mm)

    Length: 10", 20", 30", 40" etc.

    Removal Ratings (µm)0.1, 0.22, 0.45
    Filtration Area0.7m2 /Ø68-10"
    Dissolution per 10" filter<30mg
    Maximum Continuous Operating Temperature170°C
    Maximum Differential Pressure

    0.4MPa/50℃

    0.15MPa/170℃

    Endotoxin<0.25EU/ml

    Ordering information:


    1234567
    PFA0.22---10ASP--X

    1

    Membrane



    PTFE


    2

    Pore size



    0.1 / 0.22 / 0.45 μm


    3

    Length



    10” / 20” / 30” / 40”


    4

    Connector/End Cover

    A/AA/B/BB/C/CC/D/E/EE/F



    Spear+222

    Spear+222adapter with encapsulated reinforcing stainless steel ring

    Flat+222

    Flat+222adapter with encapsulated reinforcing stainless steel ring

    Spear+226

    Spear+226adapter with encapsulated reinforcing stainless steel ring

    Flat+Flat

    Flat+226

    Flat+226adapter with encapsulated reinforcing stainless steel ring

    Flat+215

    Spear+3 Flange Bayonet adapter


    5

    Gasket Material

    S, E, F, FF



    S: Silicon rubber

    E: EPDM rubber

    F: Fluorine rubber

    FF: Encapsulated fluoroelastomer


    6

    Application



    Pharmaceutical grade for bio-pharmaceutical&food and beverage industry


    7

    Special Specification Remarks



    Standard Specification Default


    Material of Filter Cartridge components:

    Filter membrane: PTFE

    Support/Drainage: PFA/ECTFE

    Core/Cover/End cover/End caps: PFA

    Sealed leads/Fins: 222, 226PFA

    O-rings: Encapsulated fluoroelastomer, Perfluorinated flat gasket

    Characteristics and Features:

    • Excellent high-temp resistance and extensive chemical compatibility.

    • Perfluoropolymer structure is suitable for filtration of various polar strong acids and bases.

    • Double membrane structure, absolute bacterial retention rate.

    • The samples of filter cartridges successfully passed the bacterial retention testing required by regulations, LRV>7. Integrity can be maintained after repeated high-pressure disinfection.

    • All the compositions meet the requirements of the biological testing characteristics of USP Class 6 plastic products at 121°C and the food contact materials listed in the relevant regulations of Chapter 21 of the Federal Regulations of the United States (CFR).

    • It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 clean environment.

    • Production and usage are traceable.


    Typical Application:

    • Ozone resistant filtration of bottled drinking water

    • Filtration of high temperature and highly corrosive chemicals in semiconductor manufacturing process

    • Filtration of various acids, alkalis, organic solvents and other chemicals

    • Filtration of etching, cleaning, photoresist, developer and other strong oxidizing liquid

    Adapter Style:

    PES membrane pleated filter cartridge Adapter Style
