Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane

    Buy cheap Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane from wholesalers

    Buy cheap Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane from wholesalers
    • Buy cheap Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane from wholesalers
    • Buy cheap Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane from wholesalers

    Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LENGE-PTFE
    Certification : CE/SGS/ISO/FDA
    Price : USD 20-30 / PCS
    Payment Terms : T/T, L/C
    Supply Ability : 2000 Pieces Per Month
    Delivery Time : 5 - 7 Days
    • Product Details
    • Company Profile

    Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane

    2.5 Inch 226 Fins DIPTFE Pleated Filter Cartridge With 0.22um Membrane


    DIPTFE Pleated Filter Cartridge is made of imported hydrophilic modified polytetrafluoroethylene (PTFE) filter membrane.
    ■ Extensive chemical compatibility;
    Resistant to strong acid and alkali;
    Hydrophilic property after modification;
    Directly filter polar aqueous solution;
    Integrity test before delivery to ensure absolute sterilization.


    Material of filter element components:

    Filter material : Hydrophilic PTFE (DIPTFE) membrane

    Supports/Diversion : PP

    Core/Cover/End cover/End caps : PP

    Sealed leads/Fins : PP,Built in stainless steel

    O-Ring : 222,226 silicon rubber etc.

    Sealing technology : Hot melt without adhesives

    Characteristics and features

    • Excellent high-tem resistance and extensive chemical compatibility.

    • All constituent materials comply with the biological test characteristics of USP Class VI 121 ℃ plastic products, and comply with the food contact materials listed in the relevant provisions of Chapter 21 of the United States Federal Regulations (CFR).

    • Excellent hydrophilicity, suitable for sterilization and filtration of strong acid and alkali liquid.

    • The sampling of filter element successfully passed the bacterial challenge test required by regulations, LRV≥7.Integrity can be maintained after repeated high-pressure disinfection.

    • Each filter element should pass the integrity test before leaving the factory. The limitations of integrity testing were correlated with the results of bacterial challenge experiments.

    • It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 environment.

    • Production and usage are traceable.

    • Large air flow, low differential pressure and long service life.


    Technical specifications and operating parameters


    Size

    Diameter: 2.75" (69 mm)

    Length: 5"/10"/20"/30"/40" etc.

    Filtration AreaSingle 10" filter element is about 0.65m²
    Minimum Bubble Point of Integrity Test Data

    0.22μm: ≥ 0.1MPa

    0.45μm: ≥ 0.06MPa

    Accumulated Steam Sterilization Time
    (IPA/Alcohol)

    121°C, 100 hours

    140°C, 40 hours

    Under experimental conditions

    Maximum Differential Pressure

    Positive:0.4MPa

    Negative:0.2MPa
    25°C


    Typical application

    • Sterilization and filtration of corrosive liquid

    • Disinfection and filtration of solvent

    • Sterilization and filtration of strong oxidizing liquid

    • Filtration of chemical reagents

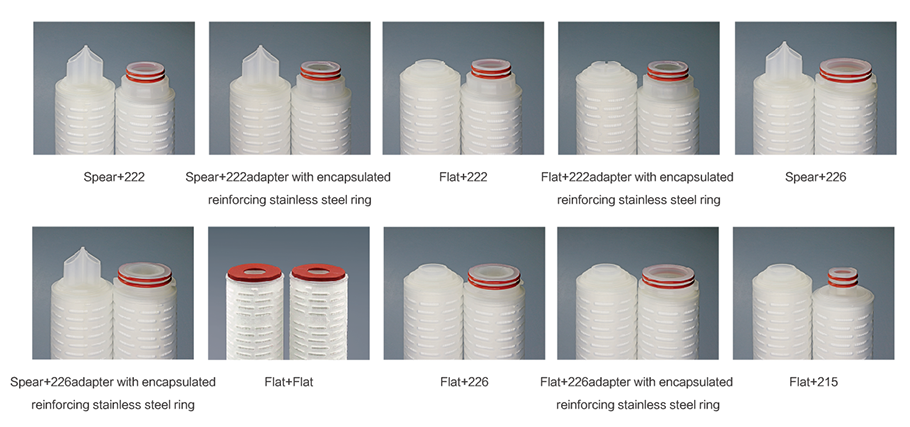

    PTFE membrane pleated filter cartridge Adapter Style


    Ordering information


    1234567
    DIPTFE0.22---10ASP--X

    1MembraneDIPTFE membrane
    2Pore size0.1, 0.22, 0.45um
    3Length5” / 10” / 20” / 30” / 40”
    4

    Connector/End Cover

    A/AA/B/BB/C/CC/D/E/EE/F

    Spear+222

    Spear+222adapter with encapsulated reinforcing stainless steel ring

    Flat+222

    Flat+222adapter with encapsulated reinforcing stainless steel ring

    Spear+226

    Spear+226adapter with encapsulated reinforcing stainless steel ring

    Flat+Flat

    Flat+226

    Flat+226adapter with encapsulated reinforcing stainless steel ring

    Flat+215

    Spear+3 Flange Bayonet adapter

    5

    Gasket Material

    S, E, F, FF

    S:silicon rubber

    E:EPDM rubber

    F:Fluorine rubber

    FF:Encapsulated fluoroelastomer

    6ApplicationPharmaceutical grade for bio-pharmaceutical&food and beverage industry
    7Special Specification RemarksStandard Specification Default

    Note: The service life of the steam sterilization and other technical parameters are tested under strictly controlled experimental conditions. However, the actual operating conditions and experimental conditions will be different. For the application of a specific process, the performance of the filter needs to be verified and confirmed.


    Ptfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um MembranePtfe Pleated Filter Cartridge 2.5 Inch 226 Fins With 0.22um Membrane

    Main contents of filter verification
    ● Microbial survival test
    ● Challenge test of bacteria and other microorganisms
    ● Chemical compatibility test of filter components
    ● Filter cartridge dissolution test
    ● Product wet integrity test
    ● Flow-differential pressure test
    ● Autoclave resistance test
    ● Test and analysis of various indexes of filter fluid
