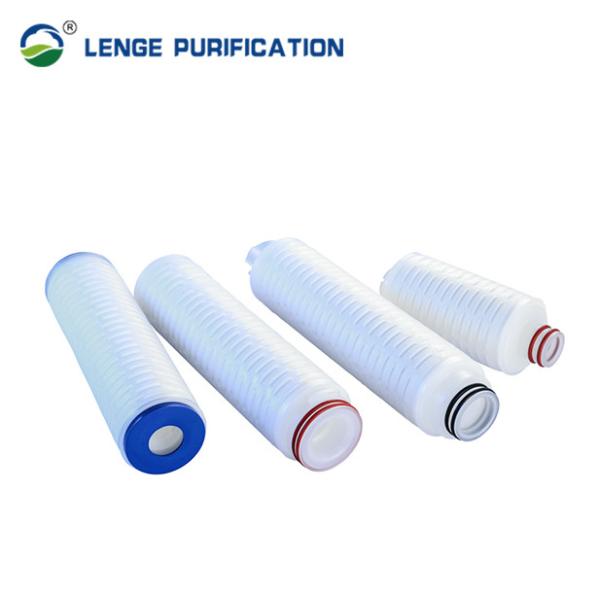

    0.1μM Pore 10 Inch PP Pleated Filter Cartridge For Pre - Filtration

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LENGE-PP
    Certification : CE/SGS/ISO/FDA
    Price : USD 3-20 / PCS
    Payment Terms : T/T, L/C
    Supply Ability : 2000 Pieces Per Month
    Delivery Time : 5 - 7 Days
    • Product Details
    • Company Profile

    0.1μM Pore 10 Inch PP Pleated Filter Cartridge For Pre - Filtration

    0.1μM Pore 10 Inch PP Pleated Filter Cartridge For Pre - Filtration:

    PP Pleated Filter Cartridge is made by asymmetric gradual aperture polypropylene (PP) plated filter and PP components through advanced hot melt sealing technology under Class100 environment and without any adhesives or surfactants.

    Material of filter element components:
    Filter material : Asymmetric gradual aperture polypropylene (PP) plated filter

    Supports/Diversion : PP

    Core/Cover/End cover/End caps : PP

    Sealed leads/Fins : PP,Built in stainless steel

    O-Ring : 222,226 silicon rubber etc.

    Sealing technology : Thermal bonding without adhesives

    Characteristics and features:

    • All polypropylene structural materials, professional hot-melt sealing technology, no adhesive, no secondary pollution

    • Extensive chemical compatibility

    • All the compositions reach up to the requirement of the biological testing characteristics of USP Class 6 plastic products at 121℃ and the food contact materials listed in the relevant regulations of Chapter 21 of the Federal Regulations of the United States (CFR). They also conform to the requirements of China's "Standard for Hygienic Safety Evalution of Equipment and Protective Materials in Drinking Water" (2001) for drinking water transport and distribution equipment.

    • It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 environment.

    • The filter membrane has a gradient aperture structure for pre-filtration with large flow rate ,low pressure difference and long service life.

    • Production and usage are traceable.

    Technical specifications and operating parameters:

    Size

    Diameter: 2.75" (69 mm)

    Length: 5"/10"/20"/30"/ 40" etc.

    Removal Ratings (µm)
    0.1 ~ 120
    Filtration AreaSingle 10" filter element is about 0.65m²
    Maximum Differential PressurePositive: 0.4MPa Negative:0.2MPa, 25°C
    Maximum Pressure Difference and TemperatureMaximum operating temperature: 85°C/0.2 MPa;


    Typical application:

    • Prefilter as terminal sterilizing filter

    • Prefiltration of Active Pharmaceutical Ingredient (API)

    • Prefiltration of blood products

    • Prefiltration of food and beverage

    • Prefiltration of liquid dispensing system

    Adapter Style:

    PP pleated filter cartridge Adapter Style


    Ordering information:


    1234567
    PP0.22---10ASP--X

    1Membrane
    Polypropylene (PP) filter membranewith asymmetric gradual pore size
    2Pore size0.04 / 0.1 / 0.22 / 0.45 μm
    3Length5" / 10" / 20" / 30" / 40"
    4

    Connector/End Cover

    A/AA/B/BB/C/CC/D/E/EE/F

    Spear+222

    Spear+222adapter with encapsulated reinforcing stainless steel ring

    Flat+222

    Flat+222adapter with encapsulated reinforcing stainless steel ring

    Spear+226

    Spear+226adapter with encapsulated reinforcing stainless steel ring

    Flat+Flat

    Flat+226

    Flat+226adapter with encapsulated reinforcing stainless steel ring

    Flat+215

    Spear+3 Flange Bayonet adapter

    5

    Gasket Material

    S, E, F, FF

    S: Silicon rubber

    E: EPDM rubber

    F: Fluorine rubber

    FF: Encapsulated fluoroelastomer

    6ApplicationPharmaceutical grade for bio-pharmaceutical&food and beverage industry
    7Special Specification RemarksStandard Specification Default
