1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing

    Buy cheap 1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing from wholesalers

    Buy cheap 1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing from wholesalers
    • Buy cheap 1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing from wholesalers

    1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LWR 34-150120
    Certification : CE/SGS/ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 150 Sets per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

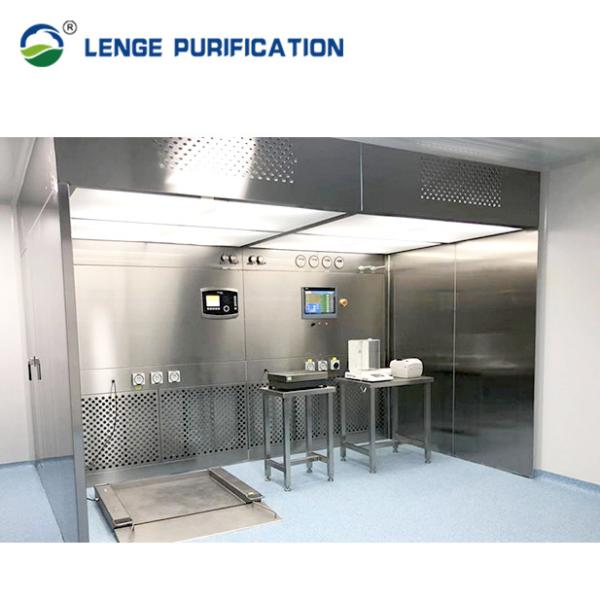

    1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing

    Dispensing Booth With For Clean Room Equipment

    1600x1800x2570 mm Dispensing Booth for Clean Room Equipment Weighing Preparation

    The clean air is divided into two parts between the high efficiency filter and the diffuser. 85-90% of the air flows through the diffuser and forms a uniform vertical one-way flow into the working area. 10-15% of the air flows into the background area through the top exhaust outlet. 10-15% of the exhaust air, so that the negative pressure of the working area relative to the background area.

    Characteristics & Features:

    • Cross contamination control through negative pressure environment option.

    • GMP modular design with minimized joints and seams.

    • All components meet or exceed applicable safety requirements.


    Technical Specifications & Parameters:


    Material

    SUS 304/316L stainless steel

    Filter Module

    Pre-filter, comport filter, HEPA filter

    Core Part

    Air Blower

    Model No.

    LWR 13-120060

    LWR 34-150120

    LWR 75-200200

    LWR 112-300200

    LWR 186-400250

    Outer Size
    W×D×H (mm)

    1300×1200×2570

    1600×1800×2570

    2100×2800×2570

    3100×2800×2570

    4100×3300×2570

    Inner Size
    W'×D'×H' (mm)

    1200×600×2000

    1500×1200×2000

    2000×2000×2000

    3000×2000×2000

    4000×2500×2000

    Rated Air Velocity
    (m/s)

    0.45±20%

    Cleanliness Class

    Same as the background area

    Power Supply

    380V, 50Hz

    Power (kW)

    0.8

    2

    4

    4

    7.5

    Note: The specifications listed in above table are only for customer’s reference. It is mostly designed and manufactured according to customer’s URS.
    Containment System:

    • Main Stream - The opening provides an airflow velocity of 0.45 m/s.

    • HEPA fan module provides laminar flow of particlefree air (measured at 0.3µm particles) to meet clean room requirements—99.995% efficient ULPA filters also available.

    • Filter Module

    • —— Pre filter -- Panel filter G4

    • —— Comfort filter -- Bag filter F8

    • —— HEPA filter -- Gel sealed mini-pleated HEPA filter H14

    • 380 V power supply


    Product Outline Design:

    称量

    1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing


    1600x1800x2570mm Dispensing Booth In Pharmaceutical Industry For Cleanroom Weighing
