    Cleanroom Powder Dispensing Booth Weighing Booth Sampling Booth For Raw Materials

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LWR 13
    Certification : CE
    Price : Negotiate
    Payment Terms : T/T, L/C
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

    Cleanroom Powder Dispensing Booth Weighing Booth Sampling Booth For Raw Materials

    Dispensing Booth For Clean Room Sampling Booth Weighing Booth

    Characteristics & Features:

    • Cross contamination control through negative pressure environment option.

    • Full unidirectional airflow provides superior aseptic work zones.

    • Fully welded single piece SUS304 internal chambers with rounded covered corners.

    • Clean interior and exterior finishing.

    • GMP modular design with minimized joints and seams.

    • Gel seal HEPA filters, HEPA/ULPA gel sealed design is better than conventional gasket sealed.

    • Dimensions are customized to suit process requirements.

    • All components meet or exceed applicable safety requirements.


    Technical Specifications & Parameters:


    Material

    SUS 304/316L stainless steel

    Filter Module

    Pre-filter, comport filter, HEPA filter

    Core Part

    Air Blower

    Model No.

    LWR 13-120060

    LWR 34-150120

    LWR 75-200200

    LWR 112-300200

    LWR 186-400250

    Outer Size
    W×D×H (mm)

    1300×1200×2570

    1600×1800×2570

    2100×2800×2570

    3100×2800×2570

    4100×3300×2570

    Inner Size
    W'×D'×H' (mm)

    1200×600×2000

    1500×1200×2000

    2000×2000×2000

    3000×2000×2000

    4000×2500×2000

    Rated Air Velocity
    (m/s)

    0.45±20%

    Cleanliness Class

    Same as the background area

    Power Supply

    380V, 50Hz

    Power (kW)

    0.8

    2

    4

    4

    7.5

    Note: The specifications listed in above table are only for customer’s reference. It is mostly designed and manufactured according to customer’s URS.

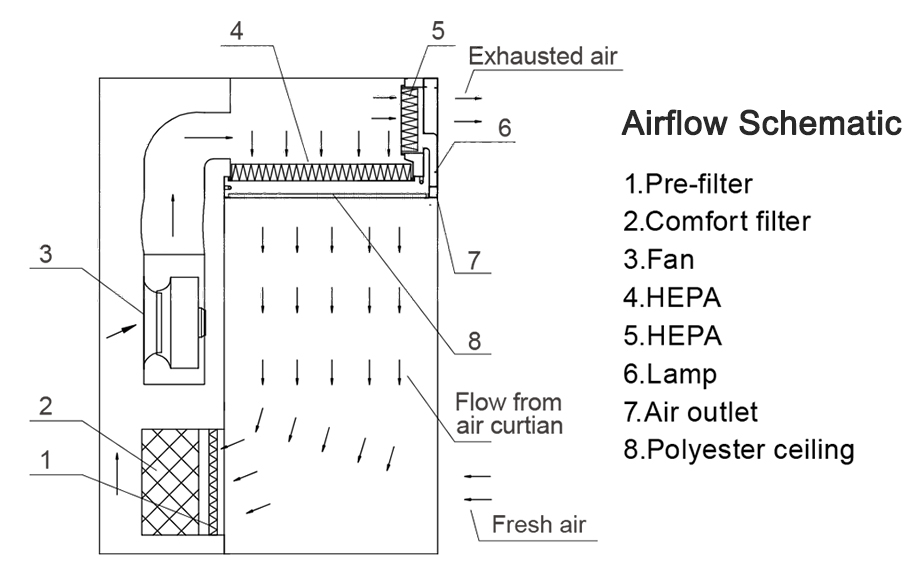

    Containment System:

    • Main Stream - The opening provides an airflow velocity of 0.45 m/s.

    • Equipped with control system.

    • Standard controls suitable for safe area applications.

    • Includes electrical sockets as standard.

    • RH/Temperature sensor.

    • HEPA filter to provide high level of filtration.

    • Emergency stop.

    • HEPA fan module provides laminar flow of particlefree air (measured at 0.3µm particles) to meet clean room requirements—99.995% efficient ULPA filters also available.

    • Filter Module

    • —— Pre filter -- Panel filter G4

    • —— Comfort filter -- Bag filter F8

    • —— HEPA filter -- Gel sealed mini-pleated HEPA filter H14

    • Fan modules includes 99.99% efficient HEPA filter to ensure clean working conditions

    • 380 V power supply

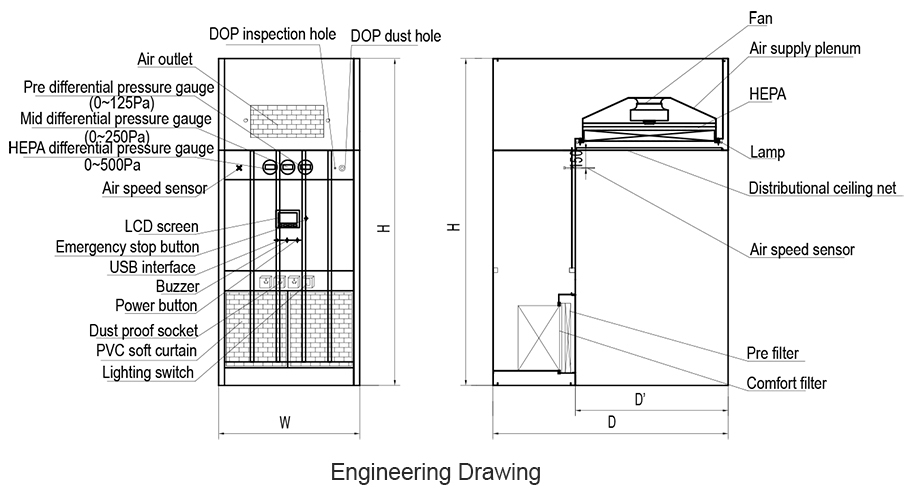

    Product Outline Design:

    称量


    称量室
