SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods

Wuxi Lenge Purification Equipments Co., Ltd.
Contact Now
    Buy cheap SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods from wholesalers

    Buy cheap SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods from wholesalers
    • Buy cheap SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods from wholesalers
    • Buy cheap SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods from wholesalers

    SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LCTW-100060
    Certification : CE / ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 300 Set per Month
    Delivery Time : 15 - 20 Days
    • Product Details
    • Company Profile

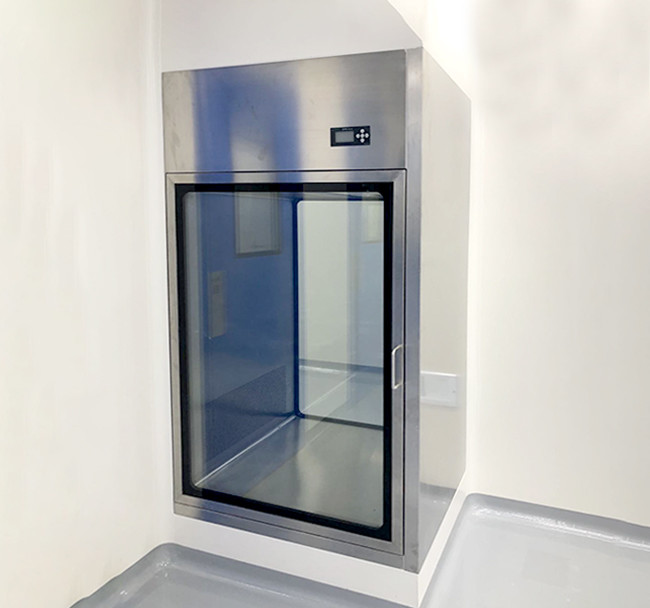

    SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods

    SS304 Corner Type Inner size 600*600*1000 Dynamic Pass Box

    SS304 Inner Size 600 * 600 * 1000 Corner Type Dynamic Pass Box For Transfering Goods

    • After the double doors are closed, the fan runs to make the air in the box circulate after passing through the high-efficiency filter.
    • Dynamic Pass Box
    • Equipped with an UV sterilizatoin lamp, the fan and UV lamp are turned on when the items are transferred to achieve the sterilization effect.

    Characteristics & Features:

    • Tempered glass doors provide a clear view of the internal chamber.

    • Variety of accessories and dimensions.

    Containment System:

    • Manufactured for the most demanding controlled environment applications.

    • Tempered glass doors provide visibility into the interior.

    • Frameless construction is easy to clean with no joints for contaminants to accumulate.

    • Stainless steel frame, and double-deck 5mm thick tempered glass door.

    Technical Specifications & Parameters:

    Model

    LCTW3 - 040040

    LCTW4 - 050050

    LCTW6 - 060060

    LCTW6 - 060080

    LCTW8 - 070070

    LCTW10 - 080080

    LCTW16 - 100100

    Material

    SUS 304/316L Stainless Steel

    Type

    Corner Type, Three - door Type, Double - layer Type, Customized

    Outer Size

    W x D x H
    (mm)

    620 x 460 x 950

    720 x 560 x 1050

    820 x 660 x 1150

    820 x 660 x 1350

    920 x 760 x 1250

    1020 x 860 x 1350

    1220 x 1060 x 1600

    Inner Size

    W'×D'×H'
    (mm)

    400×400×400

    500×500×500

    600×600×600

    600×600×800

    700×700×700

    800×800×800

    1000×1000×1000

    Weight (KG)

    80

    100

    130

    160

    180

    210

    250

    Custom Size

    Available

    Available

    Available

    Available

    Available

    Available

    Available

    No. of Door

    2 - 4

    Door Material

    Tempered Glass

    Interlocking

    Mechanical / Electronic

    Control Mode

    Automatic / Manual Operation

    Design of
    Working Area

    Integrated Circular Arc Corner

    Rated Air
    Velocity (m / s)

    0.45 ± 20 %

    UV Lamp

    (W)

    6 × 2

    8 × 2

    8 × 2

    8 × 2

    15 × 2

    20 × 2

    20 × 2

    Noise

    (dB)

    65

    Power Supply

    220V, 50HZ

    Power

    0.2kW

    0.2kW

    0.2kW

    0.2kW

    0.2kW

    0.3kW

    0.3kW

    Note: The above specifications are only for customers' reference. It is mostly designed and manufactured according to customers' URS.

    Product Outline Design:

    传递窗


    SUS304 Inner Size 600 X 600 X 1000 Corner Type Dynamic Pass Through Box For Transfering Goods
