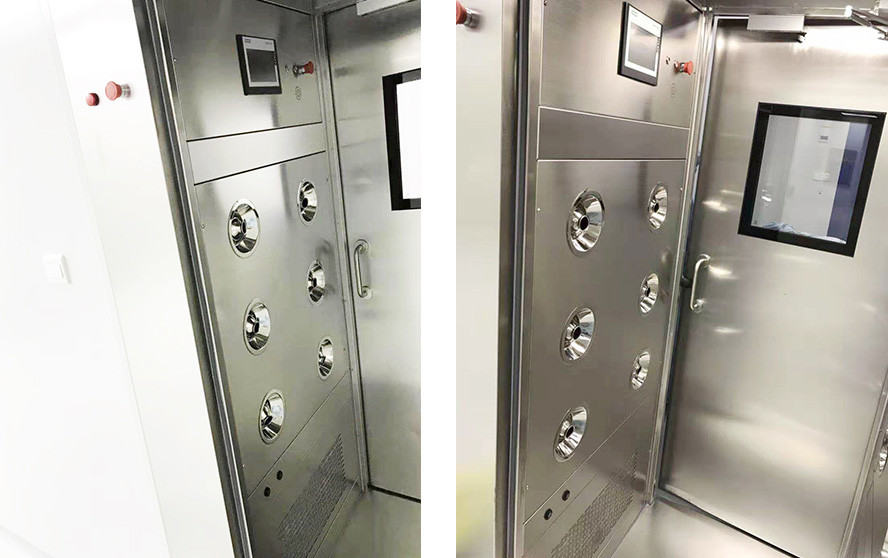

1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles

    Buy cheap 1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles from wholesalers

    Buy cheap 1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles from wholesalers
    • Buy cheap 1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles from wholesalers
    • Buy cheap 1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles from wholesalers

    1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : ASR - 080140
    Certification : CE, ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 150 Sets per Month
    Delivery Time : 15-20 Days
    • Product Details
    • Company Profile

    1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles

    1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles

    • High velocity shower jets in excess of 25m/s ensure efficient scrubbing action to remove particulate matter.

    • Operating modes can be programmed in the field.

    Technical Specification

    Power supply: 380V50Hz

    Power: 1.5kW

    Noise: 65-75dB(A)

    Button: Power supply (luminous ring visible buttons) with emergency stop

    Mist Air Shower

    • Mist air shower will form a low flow of wet spray, can contaminate the work clothes of the raw material powder particles coating, continue to condense into large material particles.

    • The high speed airflow around the large particle material will prevent the dust particles from contacting the droplets, while the small droplets of the micro particles are easy to condense the dust particles.

    • Moisten all surfaces and form beads on clothing. As time goes on, the water drops gradually increase until they roll off the clothes.


    Technical Specification

    Cleanliness: Class D or higher

    Temperature: 5°C~40°C

    Product schematic diagram

    Air Shower Room Air flow structure diagram

    Standard size and parameters

    Model

    Overall size
    W×D×H

    Work area size
    W×D×H

    Air Volume (m/s)

    Number of nozzles

    HEPA size
    L×W×D

    ASR-080090

    1200×1000×2150

    800×900×1950

    25

    6

    650×650×93×1

    ASR-080090

    1400×1000×2150

    800×900×1950

    12

    650×650×93×2

    ASR-080140

    1400×1500×2150

    800×1400×1950

    18

    955×650×93×2

    ASR-080190

    1400×2000×2150

    800×1900×1950

    24

    650×650×93×4

    ASR-080290

    1400×3000×2150

    800×2900×1950

    36

    955×650×93×4

    Note: Air shower room and air shower channel not listed in the table can be made according to the customers' requirements


    1400 x 2000 x 2150 Clean Room Air Shower With Stainless Steel Air Nozzles

    1. It adopts a fully automatic control operation, double-door electronic interlocking, induction automatic showering, and double-door locking when showering.

    2. Cold plate plastic spraying series, using multi-layer pickling technology, electrostatic dust-free plastic spraying treatment.

    3. Stainless steel handle, thickened stainless steel bottom plate, and stainless steel nozzle are used as the basic configuration.

    4. The digital display of the shower time is adopted, the air shower time is adjustable from 0 to 99s, and the air shower time has been displayed.

    5. The wind speed of the air supply and shower system designed with a new design concept can reach a super strong wind speed of 25m/s~32m/s, ensuring that the personnel and goods entering the clean room can achieve the perfect effect of thorough dust removal.
