500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room

    Buy cheap 500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room from wholesalers

    Buy cheap 500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room from wholesalers
    • Buy cheap 500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room from wholesalers
    • Buy cheap 500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room from wholesalers
    • Buy cheap 500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room from wholesalers

    500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LCTW
    Certification : CE / ISO
    Price : Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 500 Set per Month
    Delivery Time : 15 - 20 Days
    • Product Details
    • Company Profile

    500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room

    500 * 500 * 500 Stainless Steel Dynamic Pass Through Box For Clean Room

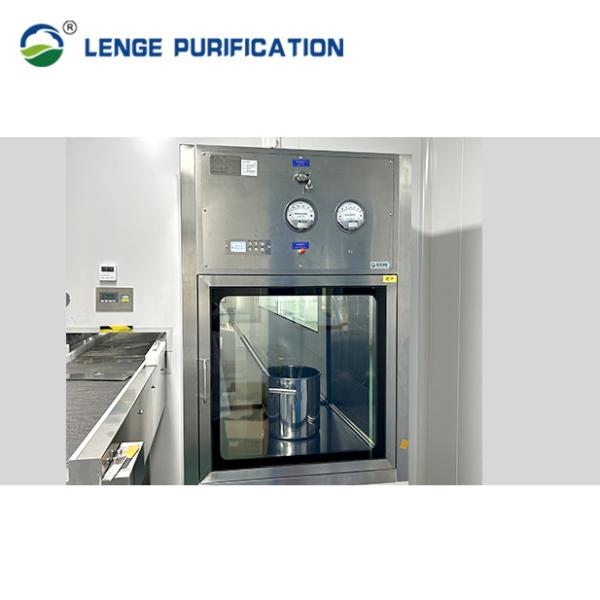

    Dynamic pass box is an equipment used for transfer of goods, and could segregate the air on both sides of the room.

    It is installed at the entrance to Clean Room in order to minimize the amount of particulate contamination entering the

    Clean Room.

    Technical Specifications & Parameters:

    ModelLCTW3 - 040040LCTW4 - 050050LCTW6 - 060060LCTW6 - 060080LCTW8 - 070070LCTW10 - 080080LCTW16 - 100100
    MaterialSUS 304/316L Stainless Steel
    TypeCorner Type, Three - door Type, Double - layer Type, Customized

    Outer Size

    W x D x H
    (mm)

    620 x 460 x 950720 x 560 x 1050820 x 660 x 1150820 x 660 x 1350920 x 760 x 12501020 x 860 x 13501220 x 1060 x 1600

    Inner Size

    W'×D'×H'
    (mm)

    400×400×400500×500×500600×600×600600×600×800700×700×700800×800×8001000×1000×1000
    Weight (KG)80100130160180210250
    Custom SizeAvailableAvailableAvailableAvailableAvailableAvailableAvailable
    No. of Door2 - 4
    Door MaterialTempered Glass
    InterlockingMechanical / Electronic
    Control ModeAutomatic / Manual Operation
    Design of
    Working Area
    Integrated Circular Arc Corner
    Rated Air
    Velocity (m / s)
    0.45 ± 20 %

    UV Lamp

    (W)

    6 × 28 × 28 × 28 × 215 × 220 × 220 × 2

    Noise

    (dB)

    65
    Power Supply220V, 50HZ
    Power0.2kW0.2kW0.2kW0.2kW0.2kW0.3kW0.3kW

    Note: The above specifications are only for customers' reference. It is mostly designed and manufactured according to customers' URS.

    Characteristics & Features:

    • Tempered glass doors provide a clear view of the internal chamber.

    • Variety of accessories and dimensions.

    Containment System:

    • Manufactured for the most demanding controlled environment applications.

    • Tempered glass doors provide visibility into the interior.

    • Frameless construction is easy to clean with no joints for contaminants to accumulate.

    • Stainless steel frame, and double-deck 5mm thick tempered glass door.

    Product Outline Design:

    传递窗


    500 * 500 * 500 Dynamic Pass Through Box Stainless Steel For Clean Room

    Wuxi Lenge Purification Equipments Co., Ltd. is located in the hinterland of the Yangtze River Delta - Wuxi, Jiangsu Province. It is a high-tech enterprise integrating R & D, production, sales and testing, specializing in purification and filtration equipment manufacturing for more than 20 years.

    1. There are 10 automatic welding machines, and 2 laser welding machines.
    2. Full welding instead of spot welding.
    3. Motor brand: Rosenberg, EBM, etc.
    4. PLC brand: Siemens, Schneider etc.
    5. Equipment verification support.
