0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber

    Buy cheap 0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber from wholesalers

    Buy cheap 0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber from wholesalers
    • Buy cheap 0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber from wholesalers
    • Buy cheap 0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber from wholesalers
    • Buy cheap 0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber from wholesalers

    0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : LENGE-PVDF
    Certification : CE/SGS/ISO/FDA
    Price : USD 20-30 / PCS
    Payment Terms : T/T, L/C
    Supply Ability : 2000 Pieces Per Month
    Delivery Time : 5 - 7 Days
    • Product Details
    • Company Profile

    0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber

    20 Inch 0.45um PVDF Pleated Filter Element With 226 Silicon Rubber


    PVDF Pleated Filter Cartridge is made of hydrophilic polyvinylidene difluoride (PVDF) filter membrane and polypropylene material parts by advanced hot-melt sealing technology in a controlled Class-100 clean environment without any adhesive and surfactant, and meets the technical requirements of the national standard of the People's Republic of China GB/T 34244-2017 filter cartridge for liquid sterilization.


    Material of filter element components:
    Filter material : Hydrophilic polyvinylidene difluoride (PVDF)

    Supports/Diversion : PP

    Core/Cover/End cover/End caps : PP

    Sealed leads/Fins : PP,Built in stainless steel

    O-Ring : 222,226 silicon rubber, washer with double split etc.

    Sealing technology : Thermal bonding without adhesives

    Characteristics and features:

    - Excellent high-temp resistance and extensive chemical compatibility.

    - Low protein adsorption performance, suitable for filtration of culture solution, biological reagent and aseptic vaccine.

    - The samples of filter cartridges successfully passed the bacterial retention testing required by regulations, LRV>7. Integrity can be maintained after repeated disinfection.

    - Each filter cartridge should pass the integrity test before leaving the factory. The limitations of integrity testing were correlated with the results of bacterial retention testing.

    - All the compositions meet the requirements of the biological testing characteristics of USP Class 6 plastic products at 121°C and the food contact materials listed in the relevant regulations of Chapter 21 of the Federal Regulations of the United States (CFR).

    - It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 clean environment.

    - Production and usage are traceable.

    Technical specifications and operating parameters:


    Size

    Diameter: 2.75"(69 mm)

    Length: 2.5"/5"/10"/20"/30"/ 40" etc.

    Removal Ratings (µm)0.22, 0.45
    Filtration areaSingle 10" filter element is about 0.65m²
    Maximum Differential Pressure0.4MPa/21℃, 0.24MPa/80℃
    Maximum Operating Temperature80℃
    Steam Sterilization121℃/30min.

    Typical application:
    - Filtration of blood products
    - Filtration of biological reagent
    - Filtration of culture medium
    - Filtration of vaccines
    - Sterilization filtration of antibiotic solution


    Adapter Style:

    NL membrane pleated filter cartridge Adapter Style


    Ordering information:


    1234567
    PVDF0.22---10ASP--X

    1MembraneHydrophilic polyvinylidene difluoride (PVDF)
    2Pore size0.22 / 0.45μm
    3Length2.5" / 5” / 10” / 20” / 30” / 40”
    4

    Connector/End Cover

    A/AA/B/BB/C/CC/D/E/EE/F

    Spear+222

    Spear+222adapter with encapsulated reinforcing stainless steel ring

    Flat+222

    Flat+222adapter with encapsulated reinforcing stainless steel ring

    Spear+226

    Spear+226adapter with encapsulated reinforcing stainless steel ring

    Flat+Flat

    Flat+226

    Flat+226adapter with encapsulated reinforcing stainless steel ring

    Flat+215

    Spear+3 Flange Bayonet adapter

    5

    Gasket Material

    S, E, F, FF

    S: Silicon rubber

    E: EPDM rubber

    F: Fluorine rubber

    FF: Encapsulated fluoroelastomer

    6ApplicationPharmaceutical grade for bio-pharmaceutical&food and beverage industry
    7Special Specification RemarksStandard Specification Default

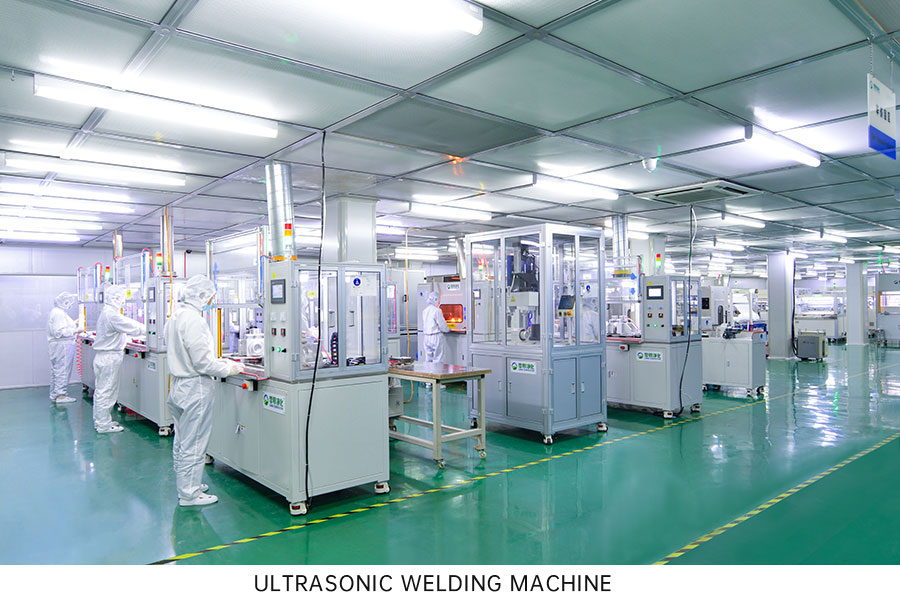

    Production equipment - Introduction of automatic production line

    0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber


    0.45um PVDF Pleated Filter Element 20 Inch With 226 Silicon Rubber

    1. International advanced production lines
    2. From the storage, production and processing of raw materials to inspection and detection are all carried out in the 100-grade purification workshop.
    3. The material of components are FDA approved, which meets the requirements of new USP for biological safety test of VI-121℃ plastics in VIVO
    4. Each filter cartridge has passed the integrity test and can be traced throughout the whole process.
