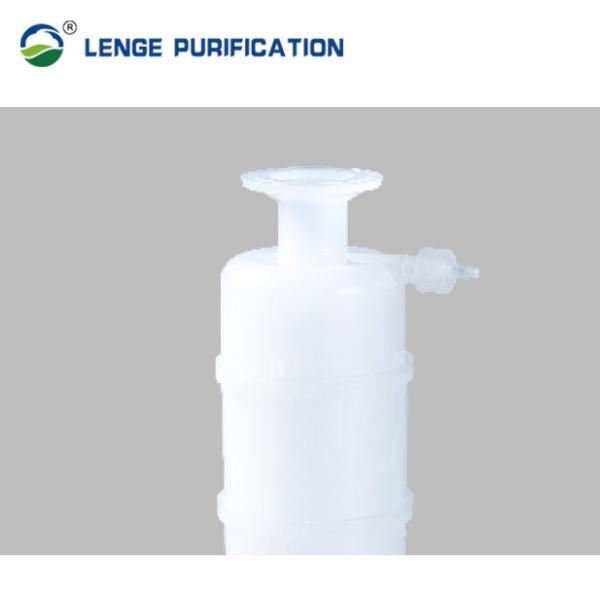

PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection

    Buy cheap PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection from wholesalers

    Buy cheap PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection from wholesalers
    • Buy cheap PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection from wholesalers
    • Buy cheap PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection from wholesalers

    PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection

    Ask Lasest Price
    Brand Name : LENGE
    Model Number : NK/NPT/BT
    Certification : CE/SGS/ISO/FDA
    Price : USD 3 - 10 / PCS
    Payment Terms : T/T, L/C
    Supply Ability : 2000 Pieces per Month
    Delivery Time : 5 - 7 Days
    • Product Details
    • Company Profile

    PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection

    10 Inch PVDF Pleated Membrane Filter Capsule With TC Connection

    NK/NPT/BT Series Capsule Filters are compact capsule assemblies with integrated compact structure design, which can reduce residue and material waste. It is equipped with a housing to save costs. The disposable use requires no cleaning, is simple to install, and can be used directly. Different sizes meet the requirements of big or small volume liquid or gas filtration.

    NK/NPT/BT Series Capsule Filter:


    PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection
    capsule-filter-diagram-01


    Features and Benefits:

    • Compact and rigid construction

    • Good sealing performance

    • High pressure resistance

    • Low hold-up volume

    • Disposable design, easy change-out

    Material & Size
    Filter MediaPES/Nylon/Hydrophobic PTFE /Hydrophilic PTFE/
    Hydrophobic PVDF/PP/Glass Fiber

    End Caps/Core/Housing/

    Support&Drainage/Cage

    PP
    Inlet/OutletNK: 50.5MM BT: 3/8" NPT: 1/4"
    Vent/DrainCNE:1/8"MNPT CSE:1/4"SWG CNE-D:1/4"MNPT
    LengthNK: 2.5", 5",10" NPT:2.5", 5" BT:2.5", 5"
    Outside Diameter68mm (2.67 in)
    Performance Characteristics
    Removal Ratings (µm)
    PP: 0.1, 0.22, 0.45...50, 100
    PES: 0.04, 0.1, 0.22, 0.45, 0.65, 0.85, 1, 5
    PTFFE: 0.1, 0.22, 0.45...10
    PVDF: 0.1, 0.22, 0.45
    NL: 0.1, 0.22, 0.45, 0.65, 1
    GF: 0.1, 0.3, 0.5, 1
    Maximum Operating Temperature60℃ (140℉)
    Maximum Forward Differential PressureLiquid: 5 bar@23℃ (50.8 psid@73.4 ℉)
    Air&Gas: 3.0 bar@23℃ (43.5 psid@73.4 ℉)


    Typical Application:


    ● Chemical Industry: filtration for ink, photoresist, developer, optical resin filtration, etc.
    ● Electronics Industry: filtration for deionized water, ultrapure water filtration, etc.
    ● Food Industry: filtration for beverage, mineral water filtration, etc.
    ● Pharmaceutical Industry: filtration for injection, vaccine, culture solution, eye drops, etc.

    Wuxi Lenge Purification Equipments Co., Ltd. is located in the hinterland of the Yangtze River Delta - Wuxi, Jiangsu Province.


    It is a high-tech enterprise integrating R & D, production, sales and testing, specializing in purification and filtration equipment


    manufacturing for more than 20 years.
